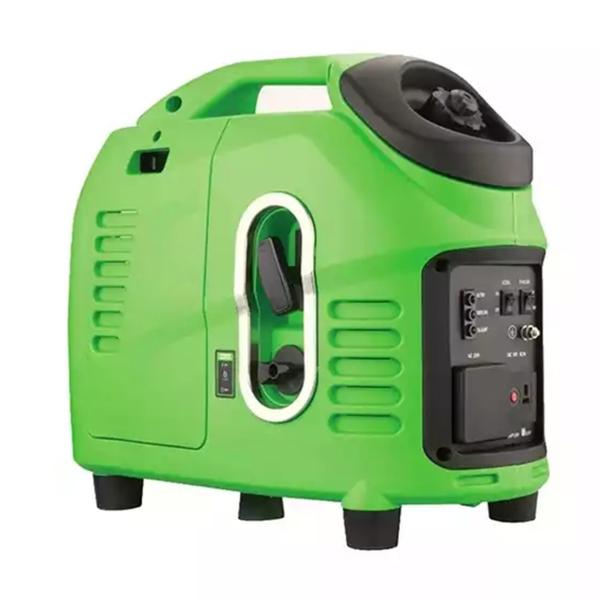

Variable Frequency Household Gasoline Generator 5KW Gasoline Silent Generator
Main Features:
1. The working speed of the engine can be changed in a large range, so it can be well matched with the generator to achieve the purpose of saving fuel;
2, the engine can work in the high speed zone, so the output of the same power, engine weight, volume are much smaller. The term is liter power, higher specific power;
3, the alternator working speed is high, also reduce the weight and volume;
4, comprehensive 2, 3 points, but also save a lot of metal materials;
5, the output power supply of high quality - pure sine wave output, harmonic content is very small;
* Jacket pre-heater
* Oil-water separator
* Oil pre-heater
* Spit-type daily fuel tank
* Standard container
* Rain-proof case
* Sound-proof container
* Trailer
Engine Data:
| Manufacturer / Model: | DCEC Cummins 6CTA8.3-G2, 4-cycle |
| Air Intake System: | Turbo, Water/Air Cooling |
| Fuel System: | PB/W type fuel pump |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 8.3L |
| Bore and Stroke: | 114*135(mm) |
| Compression Ratio: | 17:1 |
| Rated RPM: | 1500rpm |
| Max. Standby Power at Rated RPM: | 180KW/244HP |
| Governor Type: | Electronic |
| Exhaust System |
| Exhaust Gas Flow: | 34.7m3/min |
| Exhaust Temperature: | 570℃ |
| Max Back Pressure: | 10kPa |
| Air Intake System |
| Max Intake Restriction: | 6kPa |
| Burning Capacity: | 12.4m3/min |
| Air Flow: | 238m3/min |
| Fuel System |
| 100%( Prime Power) Load: | 215 g/Kw.h |
| 75%(Prime Power) Load: | 211 g/Kw.h |
| 50%(Prime Power) Load:: | 216 g/Kw.h |
| 100%( Prime Power) Load: | 39.7L /h |
| Oil System |
| Total Oil Capacity: | 23.8L |
| Oil Consumption: | ≤4g/kwh |
| Engine Oil Tank Capacity: | 18.9L |
| Oil Pressure at Rated RPM: | 276-414kPa |
| Cooling System |
| Total Coolant Capacity: | 34L |
| Thermostat: | 82-95℃ |
| Max Water Temperature: | 104℃ |
| Alternator Data |
| Number of Phase: | 3 |
| Connecting Type: | 3 Phase and 4 Wires, “Y” type connecting |
| Number of Bearing: | 1 |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Altitude: | ≤1000m |
| Exciter Type: | Brushless, self-exciting |
| Insulation Class, Temperature Rise: | H/H |
| Telephone Influence Factor (TIF): | ＜50 |
| THF: | ＜2% |
| Voltage Regulation, Steady State: | ≤±1% |
| Alternator Capacity: | 182KVA |
| Alternator Efficiencies: | 92.4% |
| Air Cooling Flow: | 0.514m3/s |
